Ghost: 用docker搭建Ghost博客详细过程(nginx+https证书全套)
【概述】
- 简单docker搭建Ghost
- 复杂docker-compose搭建Ghost+Nginx

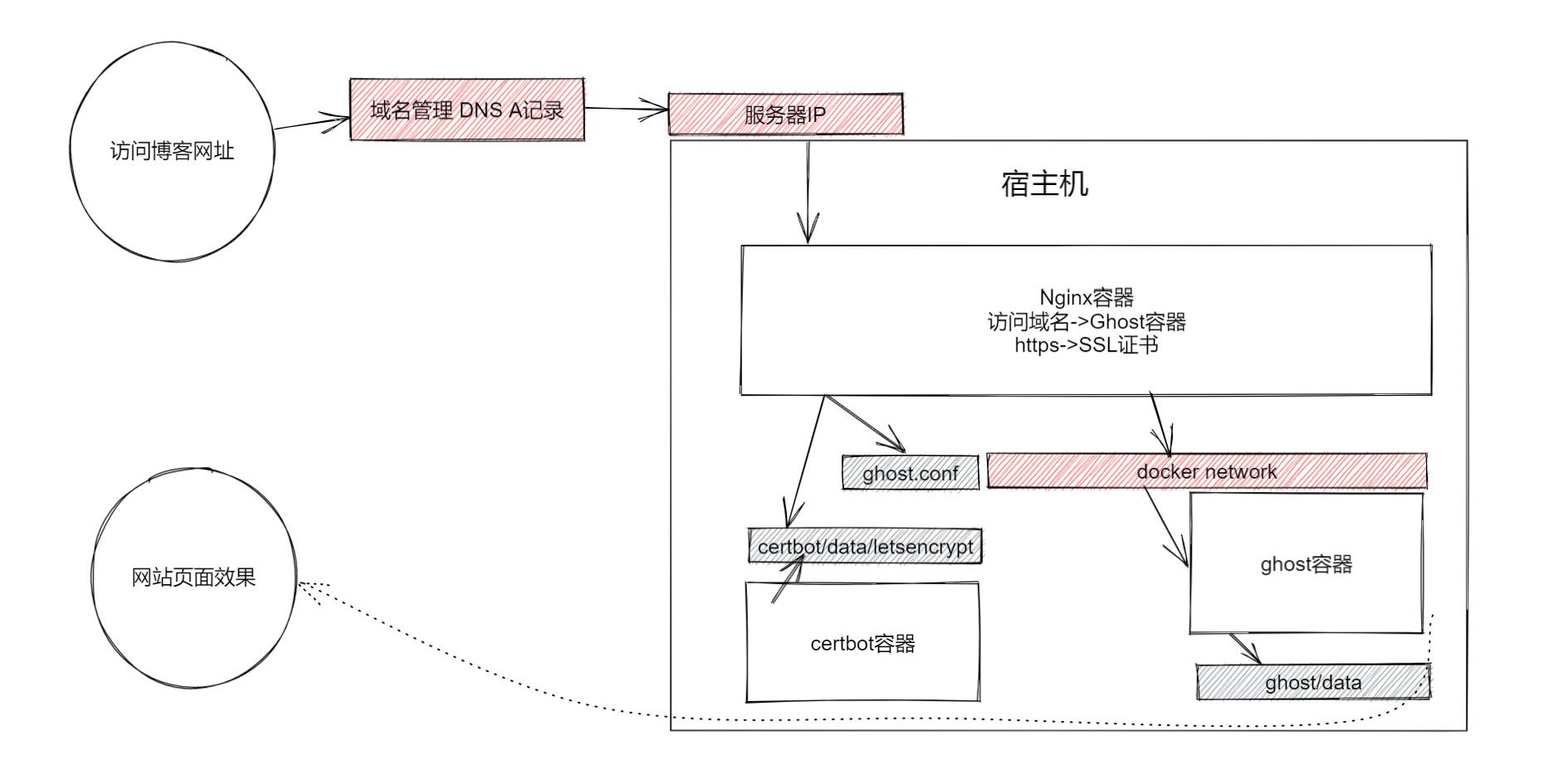

步骤概述：
解析域名启动docker容器- 就可以访问网页了
详细步骤：
- 域名：
购买服务器VPS+解析域名 - 环境：创建帐号，并预设权限
- 环境：安装docker和docker-compose
- 环境：
创建docker网络，用于串联ghost和nginx等容器 - 博客：
配置ghost的映射目录和博客配置文件 - 博客：
创建运行ghost容器 - 代理：
配置nginx映射目录和代理配置文件 - 代理：
创建运行nginx容器 - 证书：
创建运行certbot容器，并更新证书 - 部署成果，访问成功
下面就开始一个折腾的部署过程
【1 购买服务器VPS+解析域名】
- Linode注册充值
官网：www.linode.com
推荐码：注册充值时，填写推荐码，可以获得20美金赠送。
推荐码：acd1469162f9392327ba6850077ea3512a521ec3 - Linode创建多个实例
- ping一番，考察下哪里的服务器快，保留快的那个实例，其它都可以删了
- 部署centos7系统，linode4669841_tokyo » Dashboard » Deploy an Image
- 在域名服务商那，修改dns记录，添加a记录指向你的服务器IP
【2 创建帐号，并预设权限】
- 切换到root管理员，创建后续用到的ghost专用帐号
# 创建帐号
[root@instance-20210526-1447 ~]# groupadd ghost
[root@instance-20210526-1447 ~]# useradd -m -g ghost ghost -c "Ghost Blog User"
[root@instance-20210526-1447 ~]# passwd ghost
Changing password for user ghost.
New password:
Retype new password:
passwd: all authentication tokens updated successfully.
[root@instance-20210526-1447 ~]# mkdir /www
[root@instance-20210526-1447 ~]# mkdir -p /www/ghost
[root@instance-20210526-1447 ~]# mkdir -p /www/nginx
[root@instance-20210526-1514 ~]# chown -R ghost:ghost /www
[root@instance-20210526-1447 ~]# ll /www | grep ghost
drwxr-xr-x. 3 ghost ghost 21 May 26 07:01 ghost
#设置ghost用户的docker执行权限
[root@instance-20210526-1447 ~]# chmod +w /etc/sudoers;vi /etc/sudoers;chmod -w /etc/sudoers;
[root@li1696-145 ghost]# chmod +w /etc/sudoers;vi /etc/sudoers;chmod -w /etc/sudoers;
#修改sudoers文件，
#使得用户ghost执行docker相关命令时，不需要密码
ghost ALL=(ALL) NOPASSWD: /usr/bin/docker,/usr/bin/docker-compose,/usr/bin/yum
[root@li1696-145 ghost]# sudo su ghost
[ghost@li1696-145 ghost]$ cd ~
[ghost@li1696-145 ~]$ ls
[ghost@li1696-145 ~]$ ls -a
. .. .bash_history .bash_logout .bash_profile .bashrc
[ghost@li1696-145 ~]$ vi .bashrc
alias docker="sudo /usr/bin/docker"
alias docker-compose="sudo /usr/bin/docker-compose"
alias apt-get="sudo /usr/bin/yum"
[ghost@li1696-145 ~]$ source ~/.bashrc
# 弃用centos默认的firewalld=
[ghost@instance-20210526-1514 nginx]$ sudo su
[sudo] password for ghost:
[root@instance-20210526-1514 nginx]# systemctl stop firewalld
# 启用iptables管理 22,80,443
[root@instance-20210526-1514 nginx]# yum install -y iptables-services
[root@instance-20210526-1514 nginx]# systemctl start iptables
# 拷贝iptables备份文件覆盖/etc/sysconfig/iptables
[root@instance-20210526-1514 nginx]# vi /etc/sysconfig/iptables
[root@instance-20210526-1514 nginx]# cp /home/ghost/iptables /etc/sysconfig/iptables
cp: overwrite ‘/etc/sysconfig/iptables’? yes
[root@instance-20210526-1514 nginx]# systemctl restart iptables.service
【3 安装docker和docker-compose】
# 更新yum包
[root@instance-20210526-1514 ~]# yum update
Loaded plugins: fastestmirror ...
Determining fastest mirrors ...
Resolving Dependencies
[...一堆需要更新的包名...]
Dependencies Resolved
Installing: [...一堆包...]
Updating: [...一堆包...]
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
Updating: [...一堆包...] 97/97
Installed: [...一堆包...]
Updated: [...一堆包...]
Replaced: [...一堆包...]
Complete!
[root@instance-20210526-1514 ~]# yum install -y epel-release
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile ...
Installed:
epel-release.noarch 0:7-9
Complete!
# 使用官方源
[root@instance-20210526-1514 ~]# yum-config-manager --add-repo http://download.docker.com/linux/centos/docker-ce.repo
[root@instance-20210526-1514 ~]# yum install docker-ce
* docker安装
[root@instance-20210526-1514 ~]# yum install docker-ce
Loaded plugins: fastestmirror, langpacks, product-id, search-disabled-repos, subscription-manager
This system is not registered with an entitlement server. You can use subscription-manager to register.
Loading mirror speeds from cached hostfile
...
...
Dependency Installed:
containerd.io.x86_64 0:1.6.33-3.1.el7 docker-buildx-plugin.x86_64 0:0.14.1-1.el7 docker-ce-cli.x86_64 1:26.1.4-1.el7 docker-ce-rootless-extras.x86_64 0:26.1.4-1.el7
docker-compose-plugin.x86_64 0:2.27.1-1.el7
Complete!
[root@instance-20210526-1514 ~]# systemctl start docker # 启动docker服务
[root@instance-20210526-1514 ~]# systemctl enable docker # 设置为开机服务
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
[root@instance-20210526-1514 ~]# docker version
Client: Docker Engine - Community
Version: 26.1.4
API version: 1.45
Go version: go1.21.11
Git commit: 5650f9b
Built: Wed Jun 5 11:32:04 2024
OS/Arch: linux/amd64
Context: default
Server: Docker Engine - Community
Engine:
Version: 26.1.4
API version: 1.45 (minimum version 1.24)
Go version: go1.21.11
Git commit: de5c9cf
Built: Wed Jun 5 11:31:02 2024
OS/Arch: linux/amd64
Experimental: false
containerd:
Version: 1.6.33
GitCommit: d2d58213f83a351ca8f528a95fbd145f5654e957
runc:
Version: 1.1.12
GitCommit: v1.1.12-0-g51d5e94
docker-init:
Version: 0.19.0
GitCommit: de40ad0
# 安装docker-compose
[root@instance-20210526-1514 ~]# sudo curl -L "https://github.com/docker/compose/releases/download/v2.18.1/docker-compose-$(uname -s)-$(uname -m)" -o /usr/bin/docker-compose
[root@instance-20210526-1514 ~]# sudo chmod +x /usr/bin/docker-compose
[ghost@instance-20210526-1514 certbot]$ docker-compose version
Docker Compose version v2.18.1
【4 创建docker网络】
[ghost@instance-20210526-1514 ~]$ docker network create ghost_net
6622eb06ad225655bf8b680a0de93825413ad8569b98d2ba0bc7cf60fb5b752b
[ghost@instance-20210526-1514 ghost]$ docker network ls
NETWORK ID NAME DRIVER SCOPE
8dce76598c2e bridge bridge local
179cc6d32121 certbot_default bridge local
3ba098121ff5 ghost_net bridge local
67fca2971343 host host local
d837e32119cb none null local
【5 配置ghost的映射目录和博客配置文件】
- 宿主机目录将用于映射到容器里被读写，做到程序和数据分离
[ghost@instance-20210526-1514 ghost]$ mkdir -p data/var/lib/ghost/content
[ghost@instance-20210526-1514 ghost]$ mkdir -p data/var/lib/ghost/current/content
[ghost@instance-20210526-1514 ghost]$ cat data/var/lib/ghost/config.production.json
{
"url": "https://ghost.atibm.com/",
"server": {
"port": 2368,
"host": "0.0.0.0"
},
"database": {
"client": "sqlite3",
"connection": {
"filename": "/var/lib/ghost/content/data/ghost.db"
}
},
"logging": {
"transports": [
"file",
"stdout"
]
},
"process": "systemd",
"paths": {
"contentPath": "/var/lib/ghost/content"
}
}
【6 创建运行ghost容器】
- ghost镜像介绍
- https://hub.docker.com/_/ghost/
- 信息显示现在最新的版本有 1.19.0, 1.19, ..., latest
- 配置容器参数
[ghost@instance-20210526-1514 nginx]$ cat /www/ghost/docker-compose.yml
version: '3.8'
services:
ghost:
container_name: ghost
restart: unless-stopped
image: ghost:5.30.0 #4.24.0 # 4.5.0
#privileged: true
networks:
- ghost_net
volumes:
- /www/ghost/data/config.production.json:/var/lib/ghost/config.production.json
- /www/ghost/data/content:/var/lib/ghost/content
- /www/ghost/data/currentcontent:/var/lib/ghost/current/content
networks:
ghost_net:
external: true
- 使用ghost用户启动ghost容器
[ghost@instance-20210526-1514 ghost]$ docker-compose up -d
[+] Building 0.0s (0/0)
[+] Running 1/1
✔ Container ghost Started 1.9s
[ghost@instance-20210526-1514 ghost]$ docker-compose logs
ghost | [2024-06-12 02:06:35] INFO Ghost is running in production...
ghost | [2024-06-12 02:06:35] INFO Your site is now available on https://ghost.atibm.com/
ghost | [2024-06-12 02:06:35] INFO Ctrl+C to shut down
ghost | [2024-06-12 02:06:35] INFO Ghost server started in 4.068s
ghost | [2024-06-12 02:06:37] INFO Database is in a ready state.
ghost | [2024-06-12 02:06:37] INFO Ghost database ready in 5.194s
【7 配置nginx映射目录和代理配置文件】
[ghost@instance-20210526-1514 ~]$ cd /www/nginx
[ghost@instance-20210526-1514 nginx]$ cat data/nginx.conf # 映射的nginx配置文件
user nginx;
worker_processes 1;
error_log /var/log/nginx/error.log warn;
pid /var/run/nginx.pid;
events {
worker_connections 1024;
}
http {
include /etc/nginx/mime.types;
default_type application/octet-stream;
log_format main '\$remote_addr - \$remote_user [\$time_local] "\$request" '
'\$status \$body_bytes_sent "\$http_referer" '
'"\$http_user_agent" "\$http_x_forwarded_for"';
access_log /var/log/nginx/access.log main;
sendfile on;
#tcp_nopush on;
keepalive_timeout 65;
#gzip on;
include /etc/nginx/conf.d/*.conf;
}
[ghost@instance-20210526-1514 nginx]$ cat data/conf.d/default.conf # 映射的代理配置模板文件
server {
listen 80;
#server_name localhost;
server_name localhost nginx.atibm.com;
#charset koi8-r;
#access_log /var/log/nginx/host.access.log main;
location / {
root /usr/share/nginx/html;
index index.html index.htm;
}
#error_page 404 /404.html;
# redirect server error pages to the static page /50x.html
#
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root /usr/share/nginx/html;
}
# proxy the PHP scripts to Apache listening on 127.0.0.1:80
#
#location ~ \.php$ {
# proxy_pass http://127.0.0.1;
#}
# pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
#
#location ~ \.php$ {
# root html;
# fastcgi_pass 127.0.0.1:9000;
# fastcgi_index index.php;
# fastcgi_param SCRIPT_FILENAME /scripts$fastcgi_script_name;
# include fastcgi_params;
#}
# deny access to .htaccess files, if Apache's document root
# concurs with nginx's one
#
#location ~ /\.ht {
# deny all;
#}
# Let's encrypt
location ^~ /.well-known/acme-challenge/ {
root /usr/share/nginx/html;
}
location = /.well-known/acme-challenge/ {
return 404;
}
}
[ghost@instance-20210526-1514 nginx]$ cat data/conf.d/ghost.conf # 映射的ghost博客代理配置文件
# redirect all http traffic to https
server {
listen 80;
server_name ghost.atibm.com atibm.com www.atibm.com;
# google adsense ads.txt
location /ads.txt {
alias /usr/share/nginx/html/ghost/ads.txt;
}
return 301 https://$host$request_uri;
}
# redirect some domain https traffic to https://ghost.atibm.com
server {
listen 443 ssl;
server_name atibm.com www.atibm.com;
ssl_certificate /etc/letsencrypt/live/ghost.atibm.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/ghost.atibm.com/privkey.pem;
location /ads.txt {
alias /usr/share/nginx/html/ads.txt;
}
return 301 https://ghost.atibm.com$request_uri;
}
# defined ghost.atibm.com 443
server {
listen 443 ssl;
server_name ghost.atibm.com;
ssl_certificate /etc/letsencrypt/live/ghost.atibm.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/ghost.atibm.com/privkey.pem;
root /var/lib/ghost/current/core/server/public;
access_log /var/log/nginx/ghost-access.log main;
error_log /var/log/nginx/ghost-error.log warn;
location /ads.txt {
alias /usr/share/nginx/html/ghost/ads.txt;
}
location / {
proxy_pass http://ghost:2368;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-Proto https;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 150;
proxy_send_timeout 100;
proxy_read_timeout 100;
proxy_buffers 4 32k;
client_max_body_size 10m;
client_body_buffer_size 128;
}
}
【8 创建运行nginx容器】
[ghost@instance-20210526-1514 nginx]$ cat /www/nginx/docker-compose.yml
version: '3.8'
services:
nginx:
container_name: "nginx"
image: nginx:1.21.0
restart: unless-stopped
#privileged: true
volumes:
- ./data/nginx.conf:/etc/nginx/nginx.conf
- ./data/conf.d:/etc/nginx/conf.d
- ./data/html:/usr/share/nginx/html
- ./data/logs:/var/log/nginx
- /www/certbot/data/letsencrypt:/etc/letsencrypt
networks: [ghost_net]
ports:
- "80:80"
- "443:443"
environment:
- NGINX_HOST=nginx.atibm.com
- NGINX_PORT=80
networks:
ghost_net:
external: true
[ghost@instance-20210526-1514 nginx]$ docker-compose up -d
[+] Building 0.0s (0/0)
[+] Running 1/1
✔ Container nginx Started
【9 创建运行certbot容器，并更新证书】
- 流程说明
用certbot docker -> 通过certbot certonly命令 -> 用邮箱向letsencrypt.org申请更新 -> 配合域名TXT验证记录 -> 获得证书文件 -> nginx配置读取证书文件 -> 访问https://ghost博客成功
[ghost@instance-20210526-1514 ~]$ cd /www/certbot/
# 容器配置文件
[ghost@instance-20210526-1514 certbot]$ cat /www/certbot/docker-compose.yml
version: '3.8'
services:
certbot:
container_name: "certbot"
image: certbot/certbot:v1.14.0
restart: unless-stopped
tty: true
stdin_open: true
volumes:
- ./data/letsencrypt:/etc/letsencrypt # 将获取的证书导出到容器外的工作文件夹
- ./data/backup:/var/lib/letsencrypt/backup
entrypoint: "/bin/sh" # 必须使用 entrypoint 而不是 command, 以重写 certbot image 的 entrypoint
# 创建运行certbot容器
[ghost@instance-20210526-1514 certbot]$ docker-compose up -d
# 进入容器
[ghost@instance-20210526-1514 certbot]$ docker-compose exec certbot sh
/opt/certbot #
# 查看证书有效期
/opt/certbot # certbot certificates
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Found the following certs:
Certificate Name: ghost.atibm.com
Serial Number: 336402f715a5e2e8d9a37e60f3ef22bebdc
Key Type: RSA
Domains: ghost.atibm.com
Expiry Date: 2021-08-25 04:34:08+00:00 (VALID: 29 days)
Certificate Path: /etc/letsencrypt/live/ghost.atibm.com/fullchain.pem
Private Key Path: /etc/letsencrypt/live/ghost.atibm.com/privkey.pem
Certificate Name: ghost.atibm.com
Serial Number: 4dc16882a468e352fe437d1e10c0bae5bf7
Key Type: RSA
Domains: ghost.atibm.com
Expiry Date: 2021-08-25 23:53:11+00:00 (VALID: 29 days)
Certificate Path: /etc/letsencrypt/live/ghost.atibm.com/fullchain.pem
Private Key Path: /etc/letsencrypt/live/ghost.atibm.com/privkey.pem
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
- 更新你的域名证书
[ghost@instance-20210526-1514 certbot]$ docker-compose exec certbot sh
# 这句命令的效果是申请4个域名到一个证书里，按提示输入你的邮箱，能收件就行。
/opt/certbot # certbot certonly -d ghost.atibm.com -d atibm.com -d www.atibm.com -d trilium.atibm.com -d triliumcn.atibm.com --preferred-challenges dns --
server https://acme-v02.api.letsencrypt.org/directory --manual
Saving debug log to /var/log/letsencrypt/letsencrypt.log
Plugins selected: Authenticator manual, Installer None
Enter email address (used for urgent renewal and security notices)
(Enter 'c' to cancel): youraccount@mail.com
...
Account registered.
Requesting a certificate for ghost.atibm.com and 4 more domains
Performing the following challenges:
dns-01 challenge for atibm.com
dns-01 challenge for ghost.atibm.com
dns-01 challenge for trilium.atibm.com
dns-01 challenge for triliumcn.atibm.com
dns-01 challenge for www.atibm.com
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Please deploy a DNS TXT record under the name
_acme-challenge.atibm.com with the following value:
0j_CAdI8yxRO2yQRmm4pFeyz2bvqdQNJmb4Hc65nAII
Before continuing, verify the record is deployed.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Press Enter to Continue
# 到这一步先别往下，停住，把这串编码，添加到你的域名txt记录里
# txt _acme-challenge.atibm.com 0j_CAdI8yxRO2yQRmm4pFeyz2bvqdQNJmb4Hc65nAII
# 如果登录域名管理后台也能完成操作，但我使用api token调用完成
# 再开一个新的VPS终端连接，进行操作
# 需要用到 dns-lexicon包，容器没销毁之前，安装一次就行
/opt/certbot # pip install dns-lexicon
/opt/certbot # lexicon namecom create atibm.com TXT --name _acme-challenge --content 0j_CAdI8yxRO2yQRmm4pFeyz2bvqdQNJmb4Hc65nAII --auth-username 域名网站的登录帐号 --auth-token 这里是你域名商提供的api_token
# 如果添加成功，会显示以下信息
RESULT
---------
246028402
# 刚才那个证书申请界面，可以继续了，会提示成功如下
Cleaning up challenges
Subscribe to the EFF mailing list (email: xxx@xxx.xxx).
IMPORTANT NOTES:
- Congratulations! Your certificate and chain have been saved at:
/etc/letsencrypt/live/ghost.atibm.com/fullchain.pem
Your key file has been saved at:
/etc/letsencrypt/live/ghost.atibm.com/privkey.pem
Your certificate will expire on 2024-09-10. To obtain a new or
tweaked version of this certificate in the future, simply run
certbot again. To non-interactively renew *all* of your
certificates, run "certbot renew"
- If you like Certbot, please consider supporting our work by:
Donating to ISRG / Let's Encrypt: https://letsencrypt.org/donate
Donating to EFF: https://eff.org/donate-le
# dns记录销毁
/opt/certbot # lexicon namecom delete atibm.com TXT --name _acme-challenge --auth-username 域名网站的登录帐号 --auth-token 这里是你域名商提供的api_token
-
到这一步，nginx已经能访问证书文件，并且也能处理你的博客访问，需要刷新一下配置
/opt/certbot # exit #从certbot容器退出，回到宿主机
[ghost@instance-20210526-1514 certbot]$ docker exec nginx nginx -s reload -
后续证书到期之前，会有邮件通知你，进certbot容器更新一下就行了
/opt/certbot # certbot renew
Saving debug log to /var/log/letsencrypt/letsencrypt.log
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Processing /etc/letsencrypt/renewal/ghost.atibm.com.conf
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Cert not yet due for renewal
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
The following certificates are not due for renewal yet:
/etc/letsencrypt/live/ghost.atibm.com/fullchain.pem expires on 2024-09-10 (skipped)
No renewals were attempted.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
【10 部署成果，访问成功】
- 博客地址：现在我们访问【ghost.atibm.com】
- IP解析：经过【域名 dns】解析到【服务器】
- 反向代理：由【服务器 nginx服务】做代理处理，访问内部网络【服务器 docker network:ghost_net】
- 博客服务：找到并访问【服务器 ghost服务】+【服务器 certbot服务生成的证书文件】，博客数据存储到【ghost容器映射宿主机目录】下，
- 经过一番折腾，我们实现了代理、程序、数据、证书全部分离，并一起工作，并且后续维护简单，比如升级ghost，备份数据等等。
备份：后续还要编写一键备份脚本，免费实现数据安全
扩展性：当然还可以体验别的网站程序，比如wiki、ss、leanote、trilium等
运维：有了vps挺爽的，可以随便玩，加上docker的易维护，不怕服务器搞坏
服务器：同时也可以在linode再次新增一个实例出来调试，不影响现有网站
linode已经闲置了，感谢支持
